Polyethylene foamed sheet, also known as EPE, is a new environmental protection packaging material.
It is composed of numerous independent bubbles produced by physical foaming of low density polyethylene.
It overcomes the shortcomings of ordinary foamed rubber, such as brittle, deformation and poor recovery.
It is moisture-proof, shockproof, sound insulation, heat preservation, plasticity, toughness, recycling, environmental protection, strong impact resistance and many other advantages.
It also has good chemical resistance.
It is an ideal substitute for traditional packaging materials.
Main Parameters
Item | Unit | Parameter |
|---|---|---|
Model | JLD-EFP-90 | |
Diameter of screw | mm | 90 |
Applicable material | LDPE | |
Thickness of product | mm | 0.3-4 |
Max. Product width | mm | 900-1600 |
Output | kg/h | 60-90 |
Screw speed | m/min | 5-50 |
Power supply | three phase 380v/50Hz | |
Machine Rated power | kw | 100 |

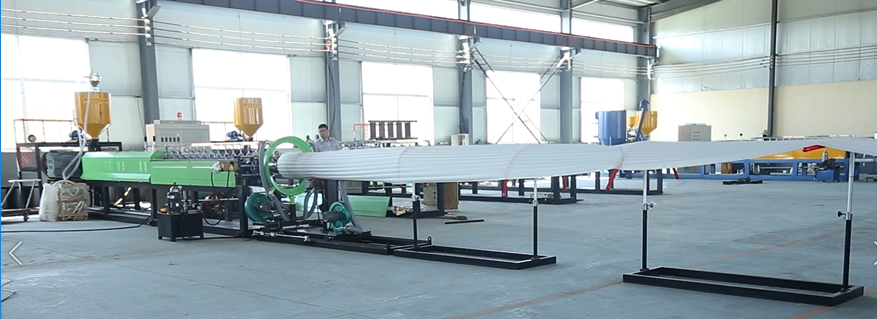

Parts of the machine
A Feeding unit

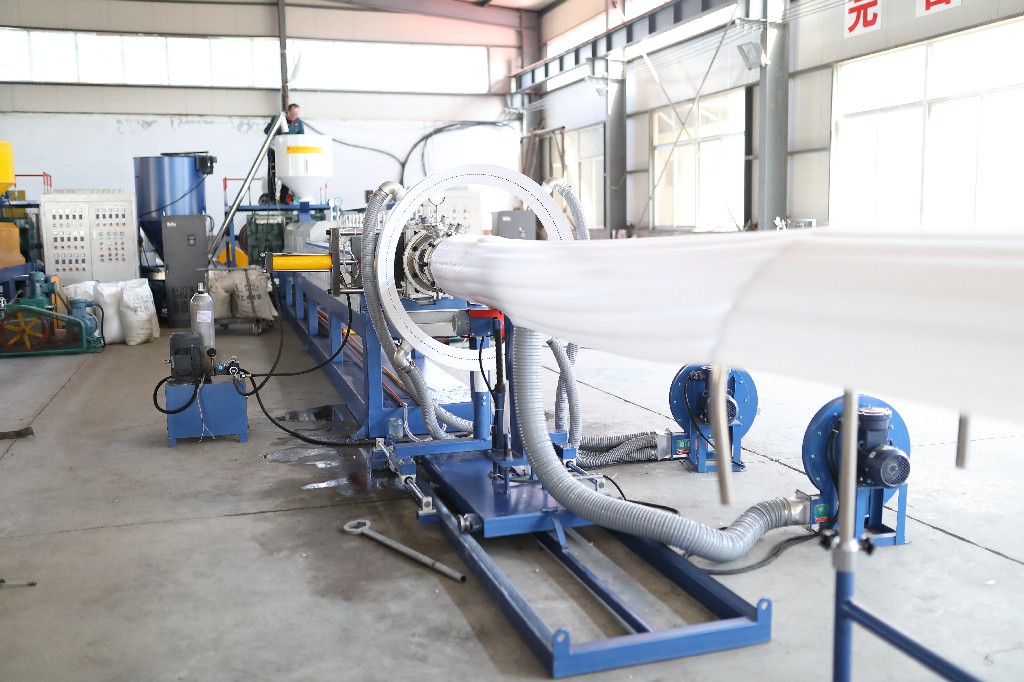

B Extruder

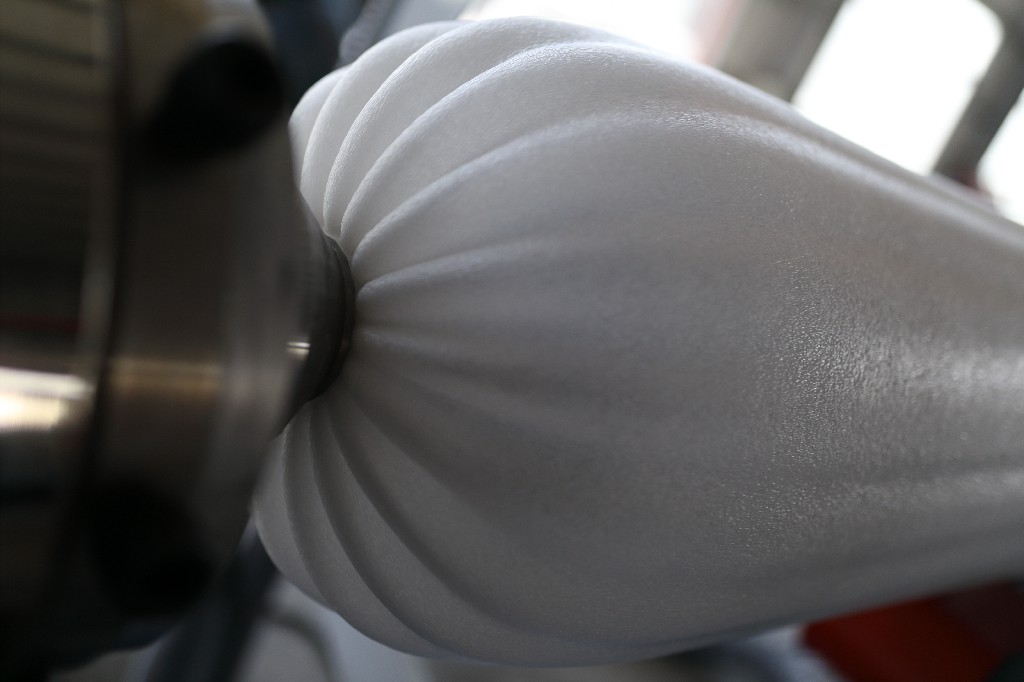

C Extruder head and mold
D Blowing agent injection unit
E Anti-shrinkage agent injection unit

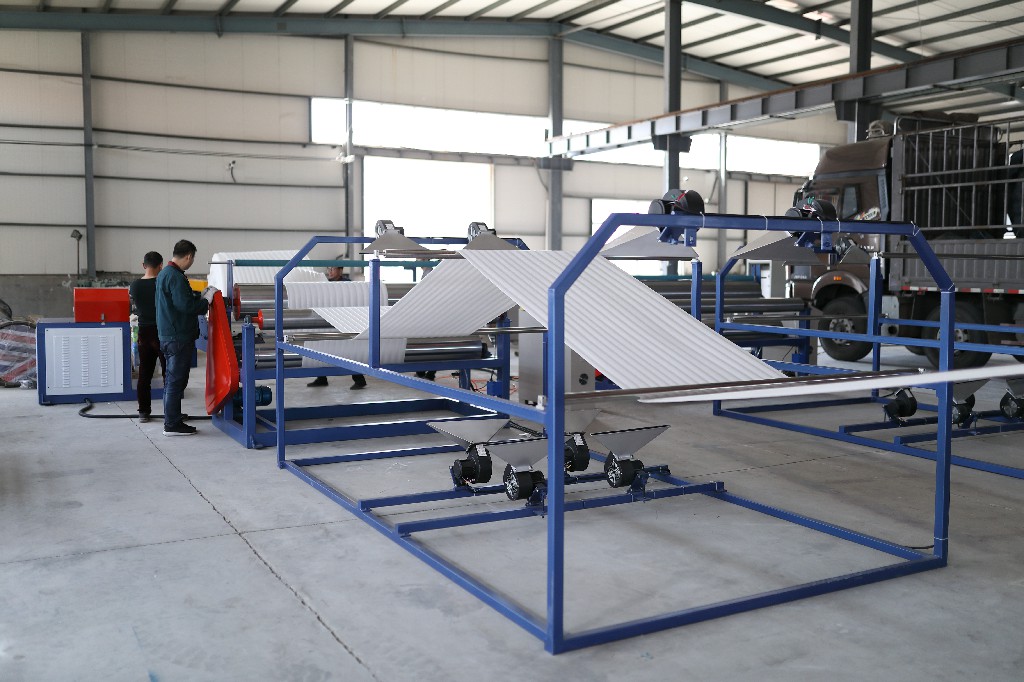

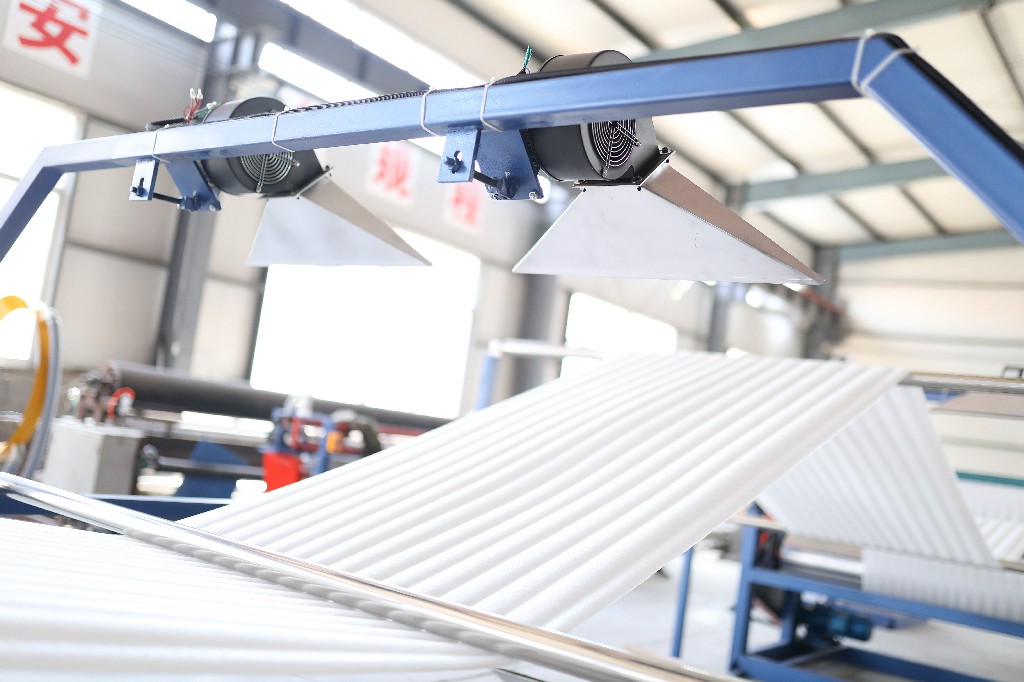

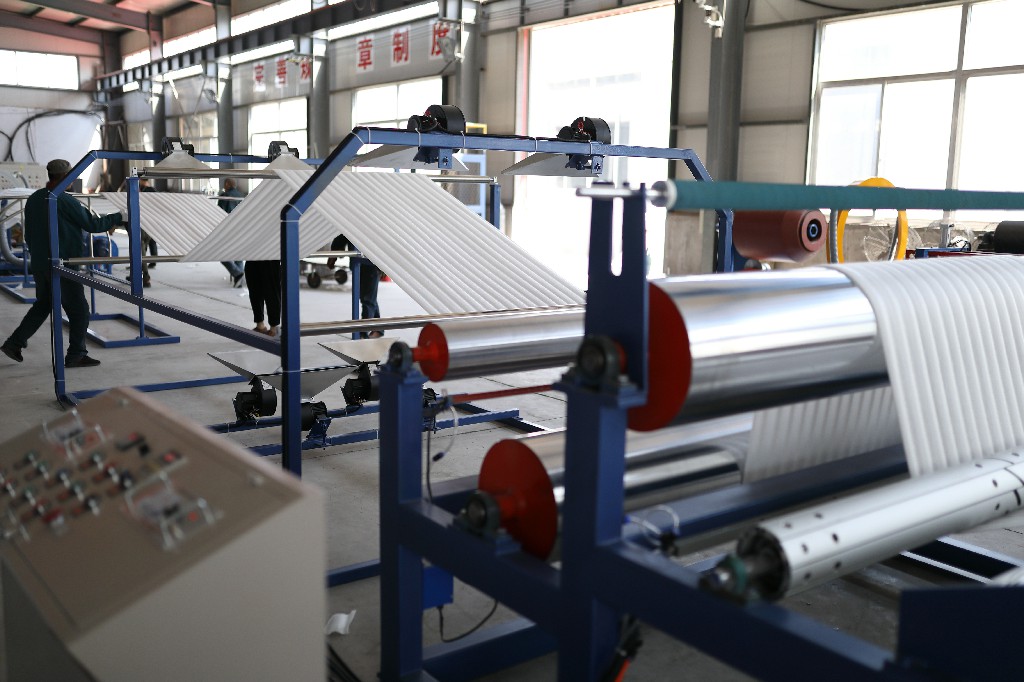

F Cooling,conveying, hauling and winding machine

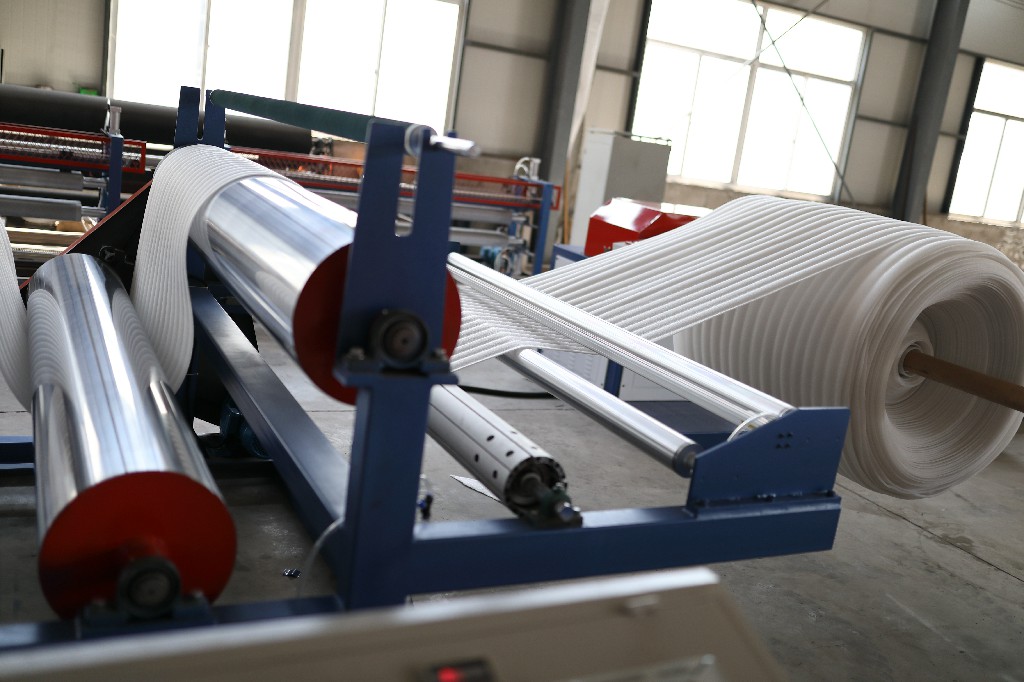

G Rewinding device
H Control cabinet
